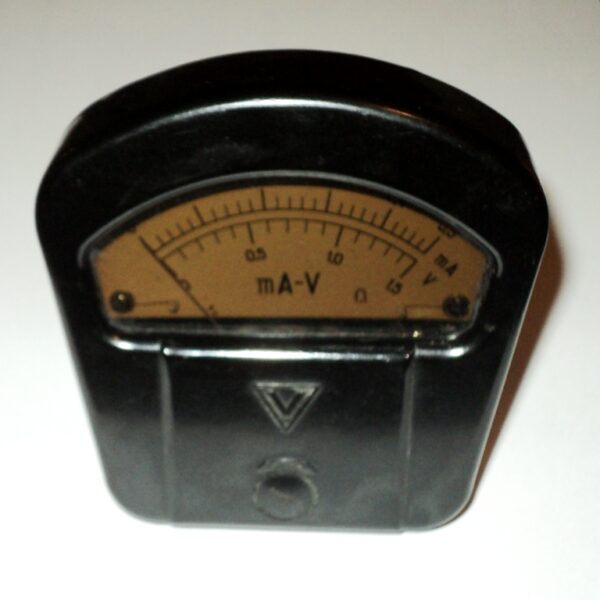

With backlight. (tuning) 6V power supply.
The device has 2 scales:
– Upper to 0.5 mA.
– Lower to 1.5 V.
Dimensions of the device:
– Top 80mm
– Bottom 60mm
– Thickness 20mm
– The projection of the magnetic system at the back is 45mm
– The diameter of the hole for the device is 45mm
Smoky glass is installed. In daylight, the scale is visible.
Illumination is provided. (2 lamps SMN-9v)
The lamps are powered via the rear contacts.
The recommended voltage is 6V (it does not give a bright pleasant light)
